    PAG 5 Amp Plastic Circular Connectors , Lemo Compatible Low Voltage Connectors

    Ask Lasest Price
    Brand Name : Ebuddy
    Model Number : PAG.M0.7GL.AC
    Certification : CE,ROHS
    Price : Negotiable
    Payment Terms : T/T, Paypal,Western Union
    Supply Ability : 10000pcs per month
    Delivery Time : 5-8workingdays
    • Product Details
    • Company Profile

    PAG 5 Amp Plastic Circular Connectors , Lemo Compatible Low Voltage Connectors

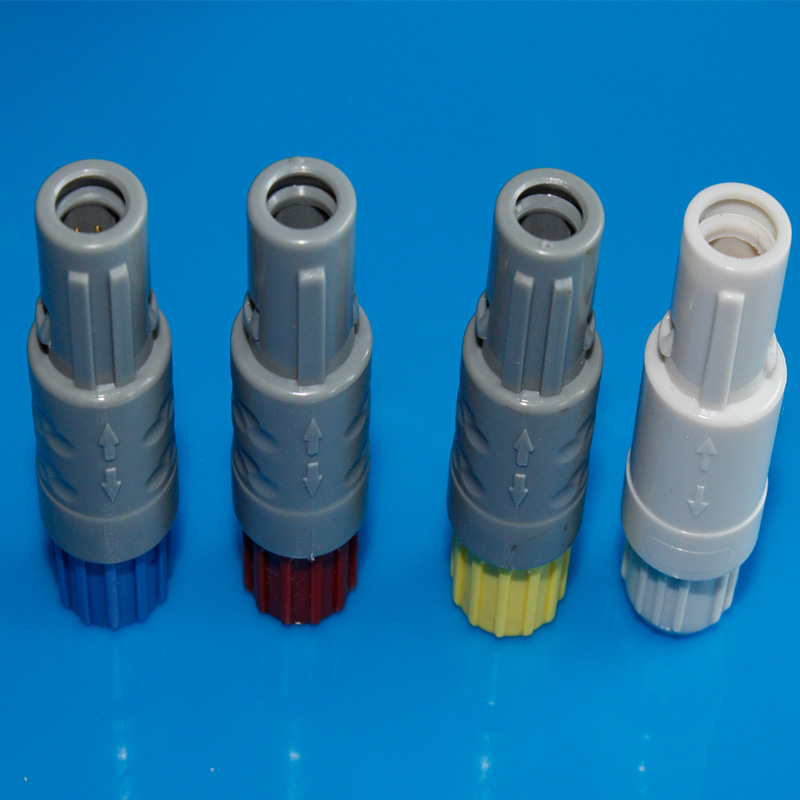

    7pin medical plug Lemo compatible plastic circular connectors PAG.M0.7GL.AC


    Technical Details:
    • Shell Style/Model: PA*: Straight plug with cable collet
    • Keying: 1 key (alpha=0; Plug: male contact; Receptacle: female contact)
    • Configuration:1P.M07 : 7 Low Voltage
    • Rated Current:5 Amps
    • Contact Type: Solder
    • Max. Matings: 2000
    • Contact Dia.: 0.7 mm (0.0275in)
    • Bucket Dia.: 0.6 mm (0.024in)
    • Max. Solid Conductor: 0.14 mm^2 (AWG 26)
    • Max. Stranded Conductor: 0.14 mm^2 (AWG 26)
    • R (max): 6.5 mOhm
    • Test voltage (kV rms) Contact-contact: 1.05
    • Air clearance min. (mm) or Creepage distance min. (mm): 0.85
    Applications

    P series connectors are plastic Push-Pull connectors. They are widely used in electronic equipments, instrument & meters, LED display screen, and especially in medical devices, such as

    • patient monitor
    • respirator
    • anesthetic machine
    • color Doppler ultrasound
    • BP monitor
    • Infrared therapeutic instument
    • electrophysiology
    • TCD
    • electric knife
    • endoscopy
    • defibrillator
    • dental equipment
    • electric shock generator
    • MRI, etc.

    How to do cable assembly youself


    Size and Drawing:
