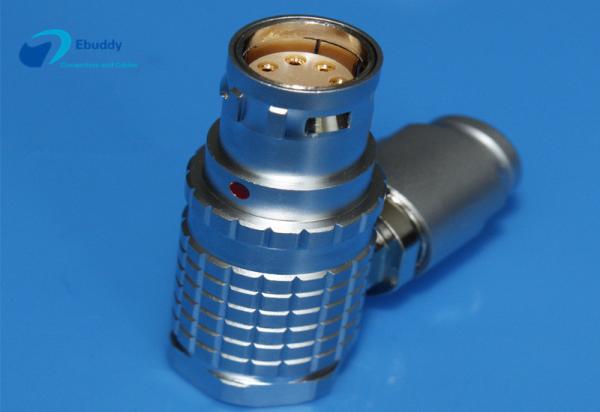

Arri Alexa mini power cable connector Lemo Elbow FHJ 2B 8pin female plug FHJ.2B.308

• Shell Style/Model: FH*: Elbow plug, cable collet
• Keying: 2 keys (alpha=37.5, plug: female contacts, receptacle: male contacts)
• Housing Material: Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
• Configuration: 2B.308 : 8 Low Voltage
• Contact Type: Solder
• Max. Matings: 5000
• Contact Dia.: 0.9 mm (0.035in)
• Bucket Dia.: 0.8 mm (0.031in)
• Max. Solid Conductor: 0.34 mm^2 (AWG 22)
• Max. Stranded Conductor: 0.34 mm^2 (AWG 22)
• R (max): 4.8 mOhm
• Vtest (contact-shell): 1250 V (AC), 1770 V (DC)
• Vtest (contact-contact): 1500 V (AC), 2120 V (DC)

​

We promise all our cable assembly:

• Professional engineer evaluate your needs
• 100% testing before shipping
• Small quantity are welcome
• Overmold is available

MOQ: 1pc is available

Process: before do the cable assembly, there are some information need confirm first, like the cable connector, length,OD,wire diagram:

• Cable application(we need to know it is for power or signal, then we can use suitable cable for you)
• Cable length, cable OD
• Both sides connectors (for the connector, please advise the model number or specification details)
• Wire connection way (Our engineer will work out a connection diagram including all cable details for your confirmtion)
