    Black Chormed Lemo 00B M7 4pin Metal Connectors FGG.00.304/EGG.00.304

    Ask Lasest Price
    Brand Name : OEM
    Model Number : FGG.00.304
    Certification : CE,ROHS
    Price : Negotiable
    Payment Terms : Western Union, MoneyGram, T/T
    Supply Ability : 90000pcs per month
    Delivery Time : 3-7 working days
    • Product Details
    • Company Profile

    Black Chormed Lemo 00B M7 4pin Metal Connectors FGG.00.304/EGG.00.304

    Black Chormed Lemo 00B 4pin connectors M7 4pin metal connectors FGG.00.304/EGG.00.304


    Features:

    Shell Style/ModelStraight plug with cable collet
    Keying1 key (alpha=0, plug: male contacts, receptacle: female contacts)
    Housing MaterialBrass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
    PERFORMANCE DETAILS
    Insert00B.304 : 4 Low Voltage
    ConfigurationBrass (gold plated)
    InsulatorP:PPS
    SpecificationsLow Voltage
    Contact TypeSolder
    Max. Matings5000
    Contact Dia0.5 mm
    Bucket Dia0.4 mm
    Max. Solid Conductor0.09 mm^2 (AWG 28)
    Max. Stranded Conductor0.05 mm^2 (AWG 30)
    R (max)8.7 mOhm
    Vtest (AC)1100 V
    Rated Current2 A
    OTHER CHARACTERISTICS
    Endurance (Shell)1000 mating cycles
    Temp (min)-20 deg C
    Temp (max)+150 deg C
    Humidity (max)<=95% [at 60 deg C / 140 F]
    IP Rating50

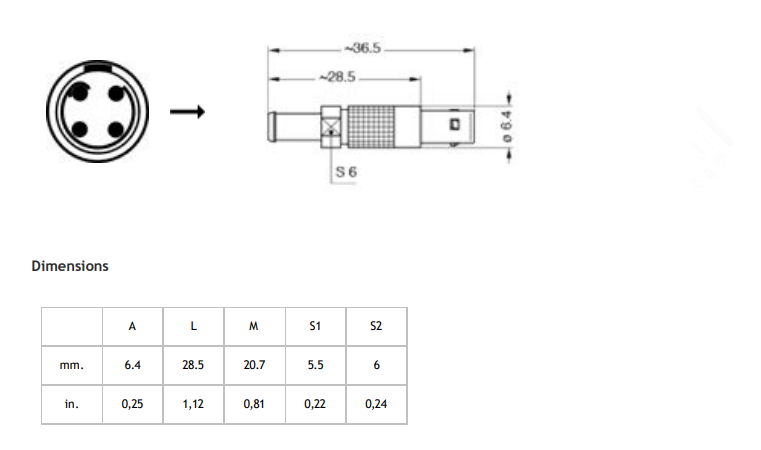

    Size drawing:


    Custom service:

    Besides the compatible models, we also can supply custom service for connectors and cables:

    • Common model connectors stock: for common usually models, we will stock materials, once you order, we can ship out in 3 days.
    • Cable assembly service: we can supply cable assembly service according to your requirements.
    • Technical support: Any questions or problems in your connector’s or cable’s working, our technical department will supplu professinal support to help you solve them
    • Cable assembly solution supply: We can make cable assembly service solution to meets you need.
    • Customized connector service: if our present connectors can’t suit exactly what you need, we can open new mould for you.

    Fast Delivery:

    We have stock for most models, fast delivery time , usually 2-3 days for samples, 5-7days for mass production


    Payment Method options:

    T/T. Paypal, Western Union, Credit card available here, for small quantity, paypal suggested.


    Collet Size:
