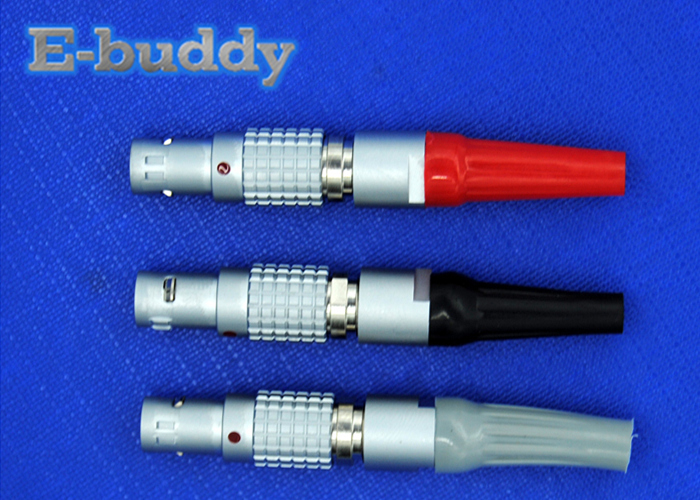

Lemo B Series 30 degree male plug 2pin 1B solder type connectors FGA.1B.302.CLAD

• Shell Style/Model :FG*: Straight plug, cable collet
• Keying: 2 keys (alpha=30, plug: male contacts, receptacle: female contacts)
• Housing Material: Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
• Configuration: 1B.302 : 2 Low Voltage
• Contact Type: Solder
• Max. Matings: 5000
• Contact Dia.: 1.3 mm (0.051in)
• Bucket Dia.: 1 mm (0.039in)
• Max. Solid Conductor: 0.5 mm^2 (AWG 20)
• Max. Stranded Conductor: 0.5 mm^2 (AWG 20)
• R (max): 3.6 mOhm
• Vtest (contact-shell): 1350 V (AC), 1910 V (DC)
• Vtest (contact-contact): 1500 V (AC), 2120 V (DC)

• Get the cable through sleeve collet nut in order, then soldering cable wire to the insulator one by one, please importantly note the wire order
• Put the split insert carrier to the soldere insulator, to keep the slot of split insert carrier mate perfect with the heave of insulator subassembly
• put the collet on the right of position of cable, make sure the heave of collet mate with the slot of split insert carrier
• pust the insulator subassembly split insert carrier collet into the outer shell in order, make sure the heave of split insert carrier mate with the slot of outer shell
• Screw the collet nut tightly
• Hitch the sleeve to the corresponding step of collet nut.
