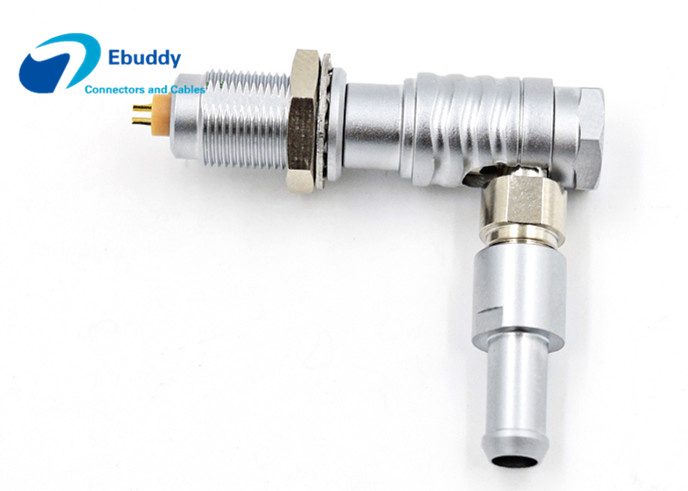

    Lemo Elbow Plug 00B Size 2pin 3pin 4pin 5pin Female Connectors FHG 00 302

    Ask Lasest Price
    Brand Name : OEM
    Model Number : FHG.00.304
    Certification : CE,ROHS
    Price : Negotiable
    Payment Terms : Western Union, MoneyGram, T/T
    Supply Ability : 90000pcs per month
    Delivery Time : 3-7 working days
    • Product Details
    • Company Profile

    Lemo Elbow Plug 00B Size 2pin 3pin 4pin 5pin Female Connectors FHG 00 302

    Lemo Elbow plug 00B size 2pin 3pin 4pin 5pin female connectors FHG 00 302


    Features:

    PERFORMANCE DETAILS
    Insert00B.302 : 2 Low Voltage
    ConfigurationBrass (gold plated)
    InsulatorP:PPS
    SpecificationsLow Voltage
    Contact TypeSolder
    Max. Matings5000
    Contact Dia0.5 mm
    Bucket Dia0.4 mm
    Max. Solid Conductor0.09 mm^2 (AWG 28)
    Max. Stranded Conductor0.05 mm^2 (AWG 30)
    R (max)8.7 mOhm
    Vtest (AC)1100 V
    Rated Current5 A
    OTHER CHARACTERISTICS
    Endurance (Shell)5000 mating cycles
    Temp (min)-20 deg C
    Temp (max)+150 deg C
    Humidity (max)<=95% [at 60 deg C / 140 F]
    IP Rating50

    Size drawing:


    Custom service:

    Besides the compatible models, we also can supply custom service for connectors and cables:

    • Common model connectors stock: for common usually models, we will stock materials, once you order, we can ship out in 3 days.
    • Cable assembly service: we can supply cable assembly service according to your requirements.
    • Technical support: Any questions or problems in your connector’s or cable’s working, our technical department will supplu professinal support to help you solve them
    • Cable assembly solution supply: We can make cable assembly service solution to meets you need.
    • Customized connector service: if our present connectors can’t suit exactly what you need, we can open new mould for you.

    Fast Delivery:

    We have stock for most models, fast delivery time , usually 2-3 days for samples, 5-7days for mass production


    Payment Method options:

    T/T. Paypal, Western Union, Credit card available here, for small quantity, paypal suggested.


    Collet Size:
