    Lemo 19 Pin Connector 2 Key 2B Size Male Plug FGC.2B.319 Model

    Ask Lasest Price
    Brand Name : OEM
    Model Number : FGC.2B.319
    Certification : CE,ROHS
    Price : Negotiable
    Payment Terms : Western Union, MoneyGram, T/T
    Supply Ability : 90000pcs per month
    Delivery Time : 3-7 working days
    • Product Details
    • Company Profile

    Lemo 19 Pin Connector 2 Key 2B Size Male Plug FGC.2B.319 Model

    Lemo 19 Pin Connector 2 Key 2B Size Male Plug FGC.2B.319 Model


    19pin Lemo Cable Connector 2 Key 2B Size Male Plug FGC.2B.319


    19pin Lemo Cable Connector FGC.2B.319 Features:
    • Lemo FGC male plug
    • 2B size, 00B, 0B,1B,3B, 4B available here
    • 2-32pins are available
    • Endurance (Shell):5000 mating cycles
    • Humidity (max):<=95% [at 60 deg C / 140 F]
    • IP Rating:50
    • Configuration:Brass (gold plated)
    • Housing Material:Brass chrome plated

    • Temp (min):-20 deg C
    • Temp (max):+150 deg C
    19pin Lemo Cable Connector FGC.2B.319 Specifications

    Shell Style/ModelFGC: Straight plug, cable collet
    Keying2 key (alpha=60, plug: male contacts, receptacle: female contacts)
    Configuration2B.319 : 19 Low Voltage
    Rated Current5 Amps
    Contact Dia.0.7 mm (0.028in)
    R (max)6.1mOhm

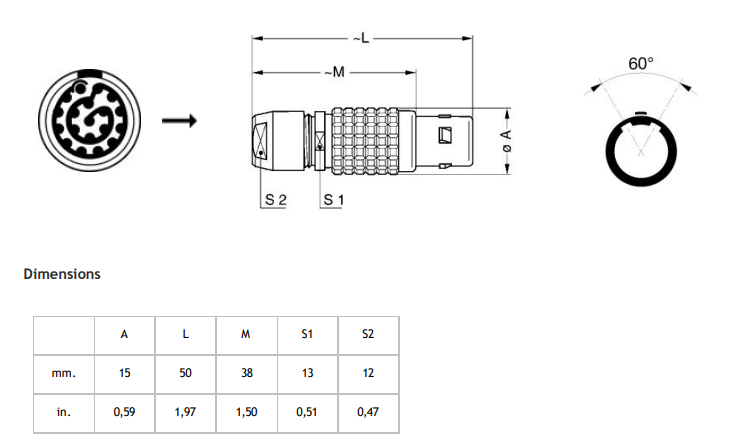

    19pin Lemo Cable Connector FGC.2B.319 Size drawing:


    19pin Lemo Cable Connector FGC.2B.319 Custom service:
    • Common model connectors stock: for common usually models, we will stock materials, once you order, we can ship out in 3 days.
    • Cable assembly service: we can supply cable assembly service according to your requirements.
    • Technical support: Any questions or problems in your connector’s or cable’s working, our technical department will supplu professinal support to help you solve them
    • Cable assembly solution supply: We can make cable assembly service solution to meets you need.
    • Customized connector service: if our present connectors can’t suit exactly what you need, we can open new mould for you.

    19pin Lemo Cable Connector FGC.2B.319 Corlorful Sleeve (Jacket):

    Specification:

    • Material: Polyurethane material(PU)
    • Temperature range: -40°--- +80°
    • Color: Black, Red, Blue, White, Yellow, Green
    • Size: 00B/0B/1B/2B, 0K/1K/2K
    • Cable OD Range: 3.1mm—8.2mm
    FAQ:

    Q: What about the quality of 19pin Lemo Cable Connector FGC.2B.319?

    A: All of our products have UL certification and are strictly tested by our QC department before shipment.


    Q: Can you offer samples to test before normal order?
    We are willing to provide samples. The sample can be delivered within 3 working days. For expensive items, please contact us first.


    Q: How long is usually your delivery time?
    A: Our delivery time is usually within 10 days after your payment.


    Q: Can you provide customization?
    A: You’d better provide parameters of the cable and the specification of the connector. If it’s for professional equipment cable, please provide weld definition.


    Q: Some connectors are available with different cables. Which cables shall I choose?
    A: Always choose the cable with the bigger diameter, because the bigger diameter results in less attenuation.


    Q: How do you solve after sale service?
    A: After the receipt of goods, if you are not satisfied or having any other problems, please contact us as soon as possible, we will give you a quick and reasonable solution.
