    Lemo 3S M18 Connector FFA Coaxial 50 Ohm Male And Female Connectors FFA.3S.250

    Ask Lasest Price
    Brand Name : OEM
    Model Number : FFA.3S.250.CLAC
    Certification : CE,ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 900000pcs per month
    Delivery Time : 3-10 working days
    • Product Details
    • Company Profile

    Lemo 3S M18 Connector FFA Coaxial 50 Ohm Male And Female Connectors FFA.3S.250

    Lemo 3S M18 Connector FFA Coaxial 50 Ohm Male And Female Connectors FFA.3S.250


    Lemo 3S M18 Coaxial Connector Description:

    Lemo 3S M18 Connector are used in audio/video applications, Machine industry, medical applications, research instrumentation as well as test and measurement environments. The self-latching connectors are with stepped inserts for alignment (of multipole version).


    Main features:

    -Security of the push-pull self-latching system;

    -Multipole types 2 to 10 contacts;

    -Solder or print contacts(straight or elbow);

    -High packing density for space savings;

    -Polarisation by stepped insert(half-moon) fitted with male and female contacts;

    -360°screening for full EMC shielding.


    Lemo 3S M18 Coaxial Connector Technical Datasheet:

    Shell Style/ModelFFA*: Straight plug, cable collet
    KeyingCircular, male
    Housing MaterialBrass (chrome plated [SAE AMS 2460]) shell and collet nut, nickel plated brass latch sleeve and mid pieces
    Configuration3S.250 : 1 Coax (50 Ohm)
    Rated Current26 Amps
    Contact TypeCoaxial 50 Ohm (Solder)
    Impedance50 Ohm
    Vtest3000 V (AC), 4200 V (DC)

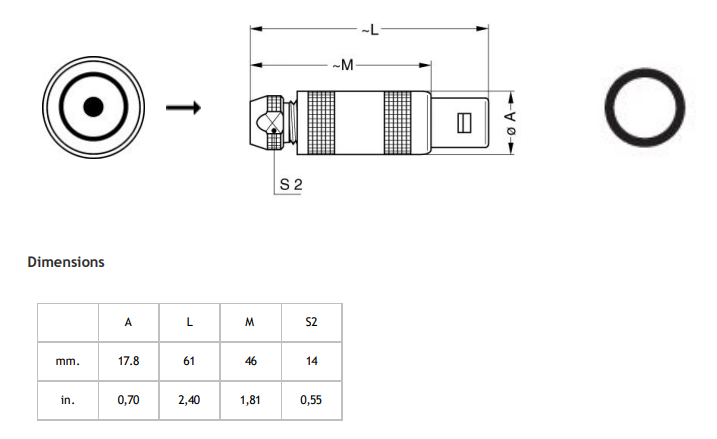

    Lemo 3S M18 Coaxial Connector Size and Drawing:


    FAQ:

    How to choose connector you want?

    (kindly tell us lemo connector model number or connector size and pins number you want)


    How to pay us?

    (We accept paypal,TT,westunion etc payment terms)


    How we ship goods?

    (By DHL,FEDEX,UPS etc pr you can choose your own express)


    If i have a male or female lemo connector,could i use EBUDDY connector instead?

    (Yes, our connectors are totally compatible with lemo connector)


    How about delivery time of Ebuddy?

    (Usually 3-5 days after received payment)
