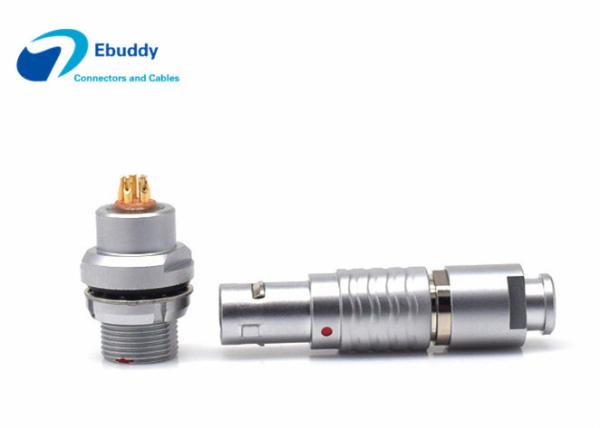

Miniature circular push pull Lemo alternative male connector with 7pin 0B size FGG.0B.307

• Series: FGG*: Straight plug
• Keying: 1key fixing, 0°
• Configuration:Brass (gold plated)
• Insert:1B.307 : 7 Low Voltage
• Contact Type:Solder
• Insulator:P:PPS
• R (max):6.1 mOhm
• Vtest (AC):1200 V
• Rated Current:5 A
• Endurance (Shell):5000 mating cycles
• Temp (min):-20 deg C
• IP Rating:50
• Shock resistance: 100g.6ms
• Salt spray corossion test : > 48hrs
• Resiatance to vibration: 10-20000Hz, 15g

M31: OD=2.6---3mm

D42: OD=3.1---4.0mm

D52: OD=4.1---5.0mm

D62: OD=5.1---6.0mm

D72: OD=6.1---7.0mm

1. 100% compatible lemo connector,

2. Help you save at least 30% cost

3. Cable assembly offer,help you save production time.

1. How to choose connector you want?

(kindly tell us lemo connector model number or connector size and pins number you want)

2. How to pay us?

(We accept paypal,TT,westunion etc payment terms)

3. How we ship goods?

(By DHL,FEDEX,UPS etc pr you can choose your own express)

4. If i have a male or female lemo connector,could i use EBUDDY connector instead?

(Yes, our connectors are totally compatible with lemo connector)

5. How about delivery time of Ebuddy?

(Usually 5-8 days after received payment)

• Common model connectors stock: for common usually models, we will stock materials, once you order, we can ship out in 3 days.
• Cable assembly service: we can supply cable assembly service according to your requirements.
• Technical support: Any questions or problems in your connector’s or cable’s working, our technical department will supplu professinal support to help you solve them
• Cable assembly solution supply: We can make cable assembly service solution to meets you need.
• Customized connector service: if our present connectors can’t suit exactly what you need, we can open new mould for you.

Our Advantages

1. 100% high quality, all failed parts get free warranty within 30 days after received.

   2. Accept 10 years warranty upon customer requirement.

   3. Repairs parts are available within 10years; we will inform the EOL products to you from time to time

   4. Free LOGO on the surface of over-molded connectors can be provided upon customer requirement.

   5. Unique designed package for you can be provided upon customer requirement.

   6. Special feature and service can be provided upon requirement.

Ebuddy Technology Co., Ltd. was founded in 2015, is a high-tech enterprise integrating R&D, production and sales. Ebuddy focuses on high precision push-pull connector and cable assembly solutions. The products and services cover Mininature connector(M6-M18), Metal connector, plastic medical connector, waterproof connector, cable assembly , widely used in kinds of harsh environment and applications.

Through good quality, competitive price, stability products and appearance design capabilities, we constantly use advanced technology to meet the diverse needs of customer. At the same time, the company exerts its advantages in the custom cable assembly sulotions, gathers more technology and wisdom power, and constantly develops and innovates, striving to gradually enter the international market by providing competitive customized connector products and cable assembly solutions.

Ebuddy has rich experience in supplying connectors and custom cables to industrial control devices, medical equipments, measuring and inspecting devices,audio & Visual and military equipments. Ebuddy will provide perfect products and services to partners, work together to explore the market, realize customer value, achieve cooperation, and come up with win-win situation.

Ebuddy sincerely looks forward to more new partners to jointly explore the market, let us work together to create a new history and brilliance in the field of connectors.
