    Circular Lemo Push Pull Connector EEG 2B 4Pin Female Socket EEG.2B.304.CLL

    Ask Lasest Price
    Brand Name : Ebuddy
    Model Number : EEG.2B.304.CLL
    Certification : CE.ROHS
    Price : Negotiable
    Payment Terms : Western Union, T/T,Paypal
    Supply Ability : 10000pcs per month
    • Product Details
    • Company Profile

    Circular Lemo Push Pull Connector EEG 2B 4Pin Female Socket EEG.2B.304.CLL

    Rear panle socket Lemo push pull circular connectors EEG 2B 4Pin female socket EEG.2B.304.CLL


    Description:

    Shell Style/ModelEE*: Fixed receptacle, nut fixing
    Keying1 key (alpha=0, plug: male contacts, receptacle: female contacts)
    Housing MaterialBrass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces

    PERFORMANCE DETAILS
    Insert2B.304 : 4Low Voltage
    ConfigurationBrass (gold plated)
    InsulatorP:PPS
    SpecificationsLow Voltage
    Contact TypeFemale solder
    Max. Matings5000
    Contact Dia1.3 mm (0.051in)
    Bucket Dia1.0 mm (0.039in)
    Max. Solid Conductor0.56 mm^2 (AWG 20)
    Max. Stranded Conductor0.56 mm^2 (AWG 20)
    R (max)3.6mOhm
    Vtest (AC)2000 V
    Rated Current15A

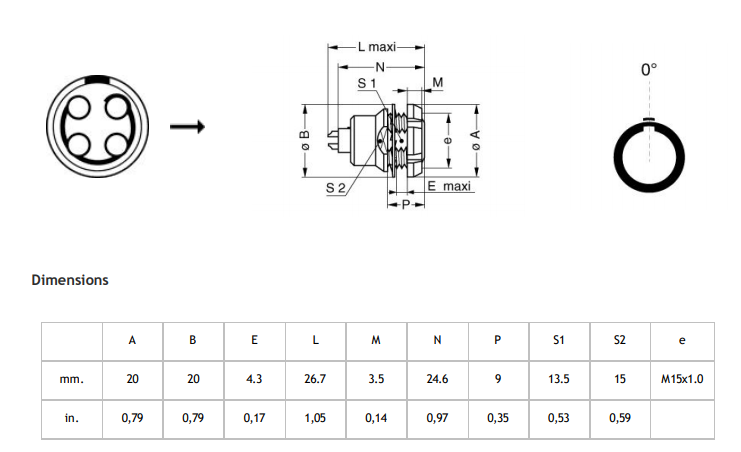

    Size Drawing:


    Warranty Policy: 1year warranty time​:


    For all our connectors and cables, we supply 1 year warranty time, any problems in warranty time:

    1. we will fix it or replace new brand one
    2. We will bear both sides shipping cost.


    Why choose Ebuddy:

    • Complete compatible with lemo/odu/fischer/ connector with lower cost
    • ROHS,ISO9001:2008,UL standard
    • Short delivery time:7-10 days normally
    • Factory can produce 5000 set/week
    • Samples offer to check first
