    Circular Lemo Cable Connector Multicore Push Pull Connector 7 Pins Female Socket

    Ask Lasest Price
    Brand Name : OEM
    Model Number : ECG.0B.305CLV
    Certification : CE,ROHS
    Price : Negotiable
    Payment Terms : Western Union, MoneyGram, T/T,Paypal
    Supply Ability : 50000pcs per month
    Delivery Time : 3-10 working days
    • Product Details
    • Company Profile

    Circular Lemo Cable Connector Multicore Push Pull Connector 7 Pins Female Socket

    Lemo circular multicore push pull connector 7 pins male female socket


    Description:

    • Series B metal circular connectors in many size and outer diameter for different applications are designed to be compatible with connector Series B which with a self-latching system for easy operations.
    • Our high quality connectors are found in a variety of challenging applications and environments including:Automotive, Audio-video, Aviation, Communications, Industrial Control, Information Systems, and Machines,Medical, Military, Test and Measurement, Data Acquisition, Data Transfer Equipment. Module Power, Sensor,Sensor Systems Instrumentation, Analysis Application.

    Specifications:
    1.Shell size00 to size 3(#00,#0,#1,#2,#3)
    2. Multi-pole types2 to 32 contacts
    3. Securitypush-pull self-latching system
    4.contacts (straight or elbow)Solder ,print
    5.PackingHigh packing density for space saving
    7.Key options0°,30°,45°,60°
    8. Male contacts and female contactsbrass with gold-plated surface
    9. Out shellsbrass with chrome nickel-plated surface
    10. InsulatorPPS
    11.Screening360 angle screening for full EMC shielding.

    About our Cable & Connectors:

    • LEMO substitute B-series connector, cable to cable connector, free socket ,inline connector.
    • Can be 100% compatible with original LEMO connector.
    • Can be wth different degree , such us 30, 45, 60, 90, 135....
    • Can plated with white or black chrome.
    • Meet ROHS standard and 360 angle screening for full EMC shielding.

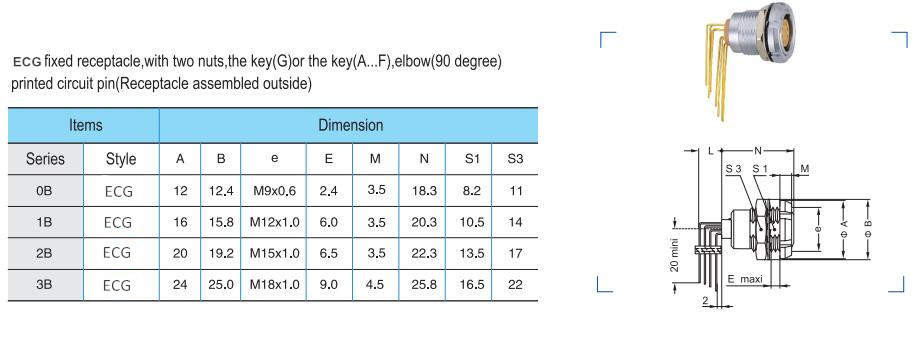

    Size and Drawing:


    Quality Circular Lemo Cable Connector Multicore Push Pull Connector 7 Pins Female Socket for sale
