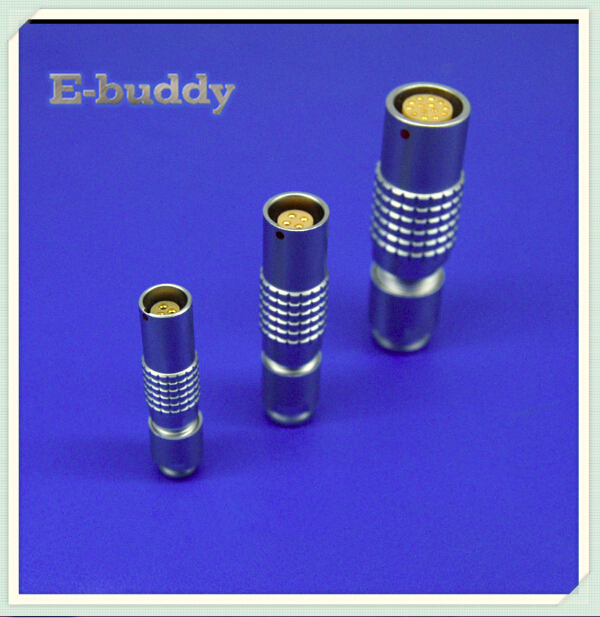

    14 Pin Free Receptacle Push Pull Circular Connectors Lemo PHG socket PHG.2B.314.CLAD

    Ask Lasest Price
    Brand Name : Ebuddy
    Model Number : PHG.2B.314.CLAD
    Certification : CE.ROHS
    Price : Negotiable
    Payment Terms : Western Union, T/T,Paypal
    Supply Ability : 10000pcs per month
    • Product Details
    • Company Profile

    14 Pin Free Receptacle Push Pull Circular Connectors Lemo PHG socket PHG.2B.314.CLAD


    2B 14pin female connector push pull circular connector Lemo FGG 2B 314 free socket


    Description:

    Technical Details
    SpecificationsLow Voltage
    Contact TypeSolder
    Max. Matings5000
    Contact Dia0.7 mm
    Bucket Dia0.8 mm
    Max. Solid Conductor0.34 mm^2 (AWG 22)
    Max. Stranded Conductor0.34 mm^2 (AWG 22)
    R (max)6.1mOhm
    Vtest (AC)1500 V
    Rated Current6.5 A

    Contacts No.:
    • · 00B sizes: 2, 3 and 4
    • · 0B sizes: 2 3 4 5 6 7 and 9
    • · 1B sizes: 2, 3, 4, 5, 6, 7, 8, 10 ,14 , 16pin
    • · 2B sizes: 2, 3, 4, 5, 6, 7, 8, 10, 12, 14, 16, 19 and 32

    Cable collet size:
    • M41: OD=3.1---4.0mm
    • D52: OD=4.1---5.0mm
    • D62: OD=5.1---6.0mm
    • D72: OD=6.1---7.0mm
    • D82: OD=7.1---8.0mm
    • D92: OD=8.1---9.0mm
    • D99: OD=9.1---9.7mm

    Size and Drawing:
