    4 Pin 6 Pin Female Socket Circular Connectors HR10A-7R-4S / HR10A-7R-6S

    Ask Lasest Price
    Brand Name : OEM
    Model Number : EY-PB-18
    Certification : CE,ROHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram,Paypal
    Supply Ability : 900000pcs per month
    Delivery Time : 3-10 working days
    • Product Details
    • Company Profile

    4 Pin 6 Pin Female Socket Circular Connectors HR10A-7R-4S / HR10A-7R-6S


    compatible 4pin 6pin female socket HR10A-7R-4S / HR10A-7R-6S


    Specification:

    1. plug type:female plug and male plug;
    2. Shell out diameter: ;11.5mm and 14.7mm
    3. Multi-pole types ;4 to 12 contacts
    4. OperationEasy push-pull operation
    5. DesignFive-key system permits only one way of coupling;
    High density, easy wiring and mounting;
    6. Outer shell materialBrass out shells which have a nickel-plated surface;
    7. Contacts materialMale contacts and female contacts are made of bronze beryllium and have a gold-plated surface
    8. InsulatorInsulator used mechanical characteristics of thermoplastics, such as PBT
    9. Compatible with ® HR10A-7P/10P , such as:HR10A-7J-4P (73) HR10A-7J-6P (73) HR10A-7J-7P (73)
    HR10A-10J-7P (73) HR10A-10J-6P (73) HR10A-10J-7P (73)
    HR10A-7J-4S (73) HR10A-7J-6S (73) HR10A-7J-7S (73)
    HR10A-10J-7S (73) HR10A-10J-6S (73) HR10A-10J-7S(73)
    FGG, FAG, FHG, PHG, EGG, EGA, ECG, ECA, EPG, EXG, B/K/S/F/P series, ODU, Fischer, , binder and redel connectors is available.

    Application

    • Medical Electronics
    • Test and Laboratary
    • Measurement Instrumentation
    • Data and Telecom Systems
    • Audio and video Applications
    • Military and Aerospace
    • Industrial Controls
    • Nuclear Technology

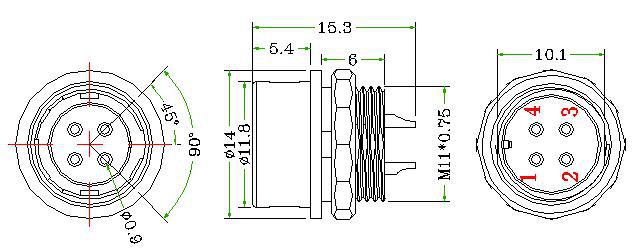

    Size and Drawing:
