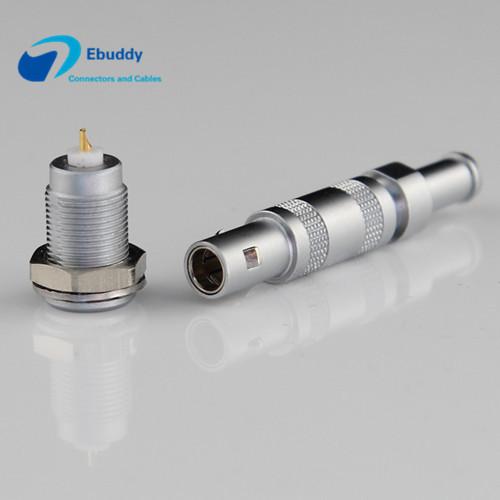

    Coaxial Lemo Female Connector Mini 0S ERA Coaxial Cable Connector

    Ask Lasest Price
    Brand Name : Ebuddy
    Model Number : ERA.0S.250.CLAC
    Certification : CE,ROHS
    Price : USD6-20/PC
    Payment Terms : T/T, Paypal,Western Union
    Supply Ability : 10000pcs per month
    Delivery Time : 5-8workingdays
    • Product Details
    • Company Profile

    Coaxial Lemo Female Connector Mini 0S ERA Coaxial Cable Connector


    Female Coaxial connectors Lemo mini 0S ERA coaxial female connector


    Description:

    • Lemo 0S coaxial ERA connector
    • Applications: surveying and mapping, sound devices
    • Good quality with low cost
    • Quick connect and disconnect, very security systems and easy for mating and unmating
    • Factory with large production capacity 20000pcs/ months
    • Security of push pull self latching system
    • Solder or PCB contacts
    • High-density installation for saving space
    • High-low insulator positiobning avoid mismating
    • 360 degree screening for full EMS shielding

    PCB Board drilling figure

    If you need open a machine mold, you must confirm the hole size according to your board, and then choose connector style, our connector have different sizes from 00 to 03, it can apply whole size board. For example, if your board panel cut-outs OD is about 8-9mm, you should choose 0B size.


    Insulating washer(color wheel):

    • Application: When your plug and socket need attached on the board, you can install a insulating washer to keep a potencial between different conductors.
    • Color option : different color for your choice: Blue/White/Gray/Yellow/Brown/Black/Red/Orange/Green.
    • Size option: 00/0/01/02, for connector max OD= 10mm-21mm. ,when choose your washer, please advise your connetcor size, we will introduce you suitable size

    Application :

    • Medical
    • Defense Security
    • Instrumentation
    • Transportation
    • Industry
    • Energy
    • Broadcast
    • Audio/video

    Connector custom service:

    Ebuddy can supply most of original Lemo/fischer/Hirose/ODU compatible connectors, if there are some models we didn’t produce at present, please no worry we can do custom for you. In this way, there are 2 ways to do this :


    • You send us the connector specification, we will do according to it.
    • Another way, if possible, you can send us a connector sample, we will do the same, it is perfect.

    Warranty Policy: 1year warranty time

    For all our connectors and cables, we supply 1 year warranty time, any problems in warranty time:


    1. we will fix it or replace new brand one
    2. We will bear both sides shipping cost.


    Please confirm size and drawing as followings:
