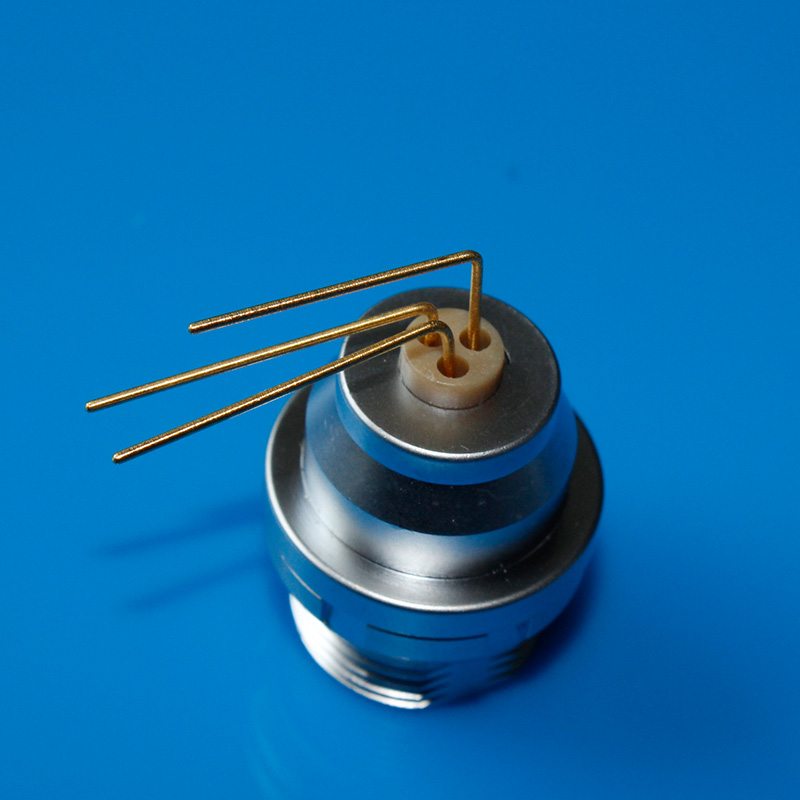

Lemo compatible EEG K serials PCB socket 3pin waterproof circular connector assembled inside receptacle

• Termination type:Female print 90° PCB
• Shell Style/Model: EE*: Fixed receptacle, nut fixing, with elbow contacts for printed circuit (back panel mounting)
• Contact Type: Print (elbow)
• Contact Dia.: 1.3 mm (0.051in)
• R (max): 3.6 mOhm
• Endurance (Shell): 5000 mating cycles
• Temp (min / max): -55°C / +200°C
• Humidity (max): <=95% [at 60 deg C /140 F]
• Vibration: 15 g [10 Hz - 2000 Hz]
• Shock Resistance: 100 g [ 6 ms]
• Salt Spray Corrosion: >1000 hr
• Climatical Category: 50/175/21
• Shielding (min): 95 dB (10 MHz)
• Shielding (min): 80 dB (1 GHz) IP Rating: 68

• Supply 1year Warranty time
• Complete compatible with lemo/odu/fischer/ connector with lower cost
• ROHS,ISO9001:2008,UL standard
• Short delivery time:7-10 days normally
• Factory can produce 5000 set/week
• Samples offer to check first

• Application: When your plug and socket need attached on the board, you can install a insulating washer to keep a potencial between different conductors.

• Color options:
