Waterproof IP68 2 Pin Lemo Connector FGG 0K Size Male And Female Connectors

Ebuddy Technology Co.,Limited
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Waterproof IP68 2 Pin Lemo Connector FGG 0K Size Male And Female Connectors from wholesalers

    Buy cheap Waterproof IP68 2 Pin Lemo Connector FGG 0K Size Male And Female Connectors from wholesalers
    • Buy cheap Waterproof IP68 2 Pin Lemo Connector FGG 0K Size Male And Female Connectors from wholesalers

    Waterproof IP68 2 Pin Lemo Connector FGG 0K Size Male And Female Connectors

    Ask Lasest Price
    Brand Name : OEM
    Model Number : EY-M713
    Certification : CE,ROHS
    Price : Negotiable
    Payment Terms : Western Union, MoneyGram, T/T
    Supply Ability : 90000pcs per month
    Delivery Time : 3-7 working days
    • Product Details
    • Company Profile

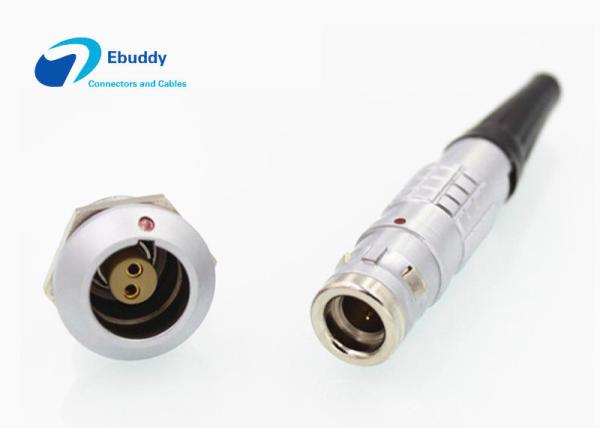

    Waterproof IP68 2 Pin Lemo Connector FGG 0K Size Male And Female Connectors


    Waterproof IP68 Lemo alternative connector 2pin FGG 0K size male and female connectors



    Technical Specifications:

    PERFORMANCE DETAILS
    Insert0K.302 : 2 Low Voltage
    ConfigurationBrass (gold plated)
    InsulatorP:PPS
    SpecificationsLow Voltage
    Contact TypeSolder
    Max. Matings5000
    Contact Dia0.9 mm
    Bucket Dia0.8 mm
    Max. Solid Conductor0.34 mm^2 (AWG 22)
    Max. Stranded Conductor0.34 mm^2 (AWG 22)
    R (max)4.8 mOhm
    Vtest (AC)1600 V
    Rated Current10 A

    Other Details:

    Endurance (Shell)5000 mating cycles
    Temp (min)-20 deg C
    Temp (max)+150 deg C
    Humidity (max)<=95% [at 60 deg C / 140 F]
    IP Rating68
    Application :
    • Medical
    • Defense Security
    • Instrumentation
    • Transportation
    • Industry
    • Energy
    • Broadcast
    • Audio/video

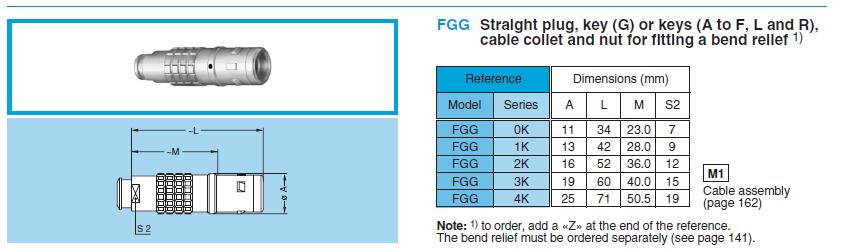

    Size and Drawing



    Quality Waterproof IP68 2 Pin Lemo Connector FGG 0K Size Male And Female Connectors for sale
