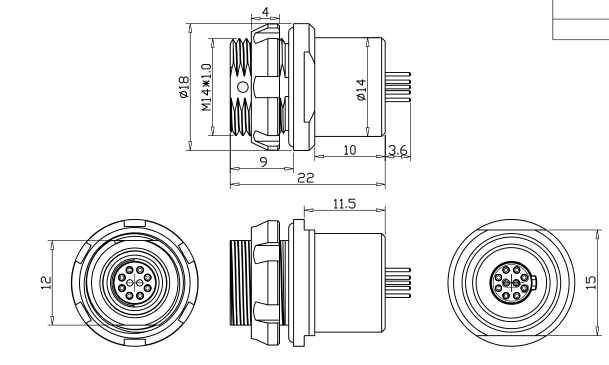

10pin rear panel mount socket Fischer DBP 1031 compatible female connector DBP1031Z010

• 10pin fischer rear panel mount socket
• Housing Material:Brass chrome plated
• Configuration:Brass (gold plated)
• Insulator:P:PPS
• Contact Type:Solder/printed circuit(straight or elbow)

• Temp (min):-20 deg C
• Temp (max):+150 deg C
• Humidity (max):<=95% [at 60 deg C / 140 F]
• IP Rating:50
• Style: push pull self-locking
• Pin No: 2-32pin/Multi pin
• Shock resistance: 100g.6ms
• Salt spray corossion test : > 48hrs
• Resiatance to vibration: 10-20000Hz, 15g

If you need open a machine mold, you must confirm the hole size according to your board, and then choose connector style, our connector have different sizes from 00 to 03, it can apply whole size board. For example, if your board panel cut-outs OD is about 8-9mm, you should choose 0B size.

• Application: When your plug and socket need attached on the board, you can install a insulating washer to keep a potencial between different conductors.

• Color option : different color for your choice: Blue/white/Gray/yellow/brown/black/red/orange/Green.

• Size option: 00/0/01/02, for connector max OD= 10mm-21mm. ,when choose your washer, please advise your connetcor size, we will introduce you suitable size
